Technical Data
Material: PU 93±2A green
Pressure: ≤2MPa
Speed: ≤2 m/s
Temperature: -35℃ to +100℃

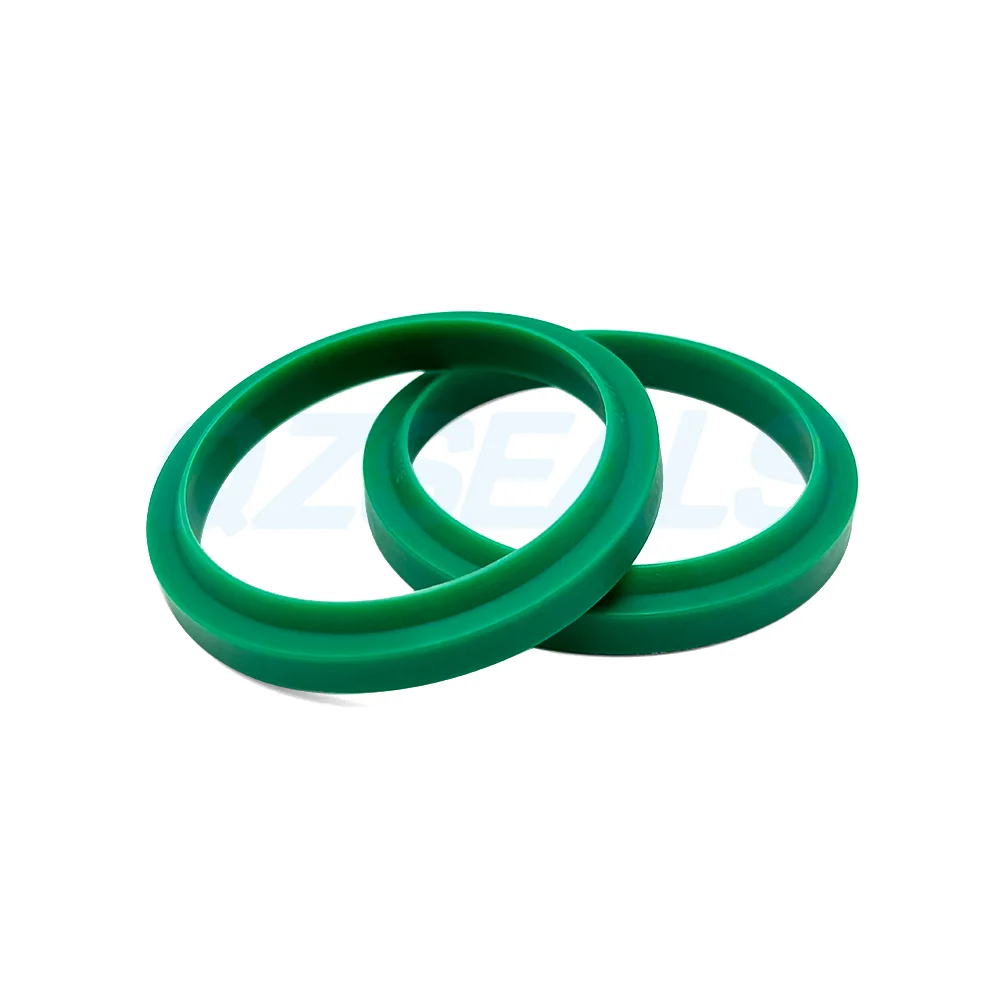

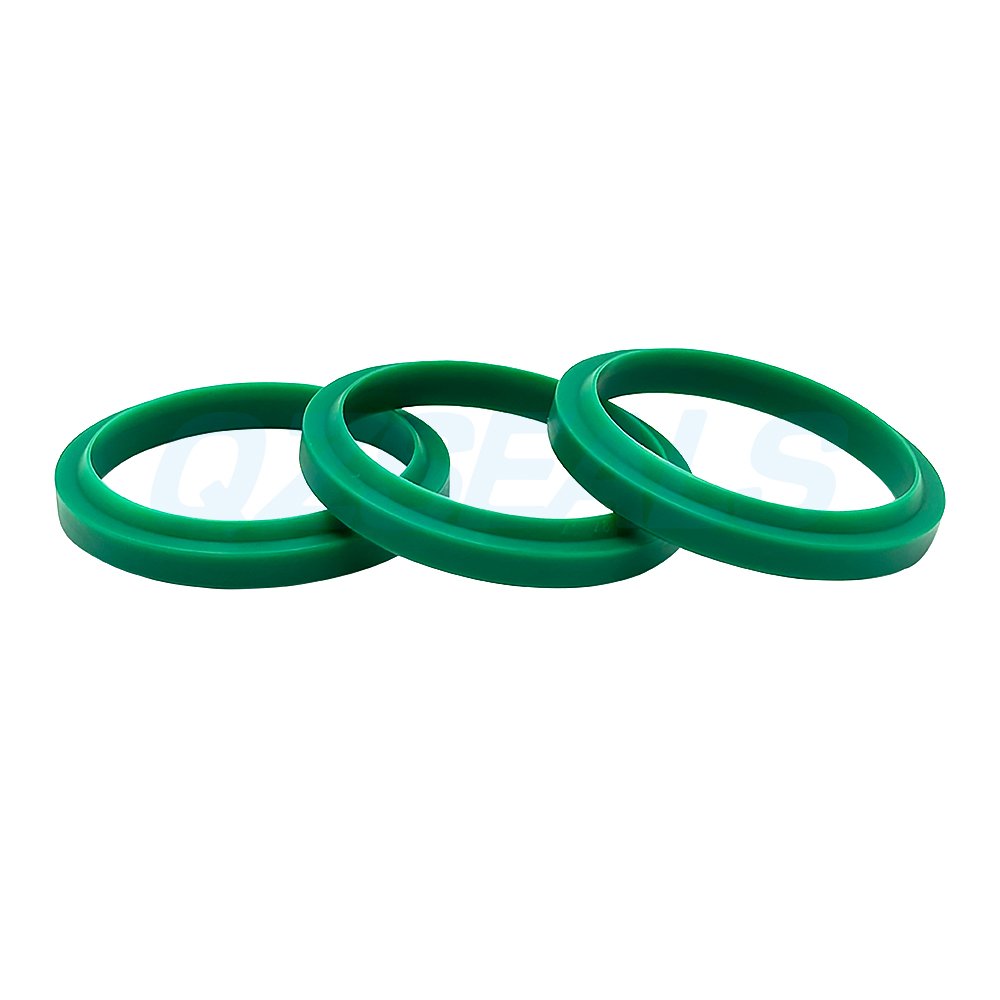

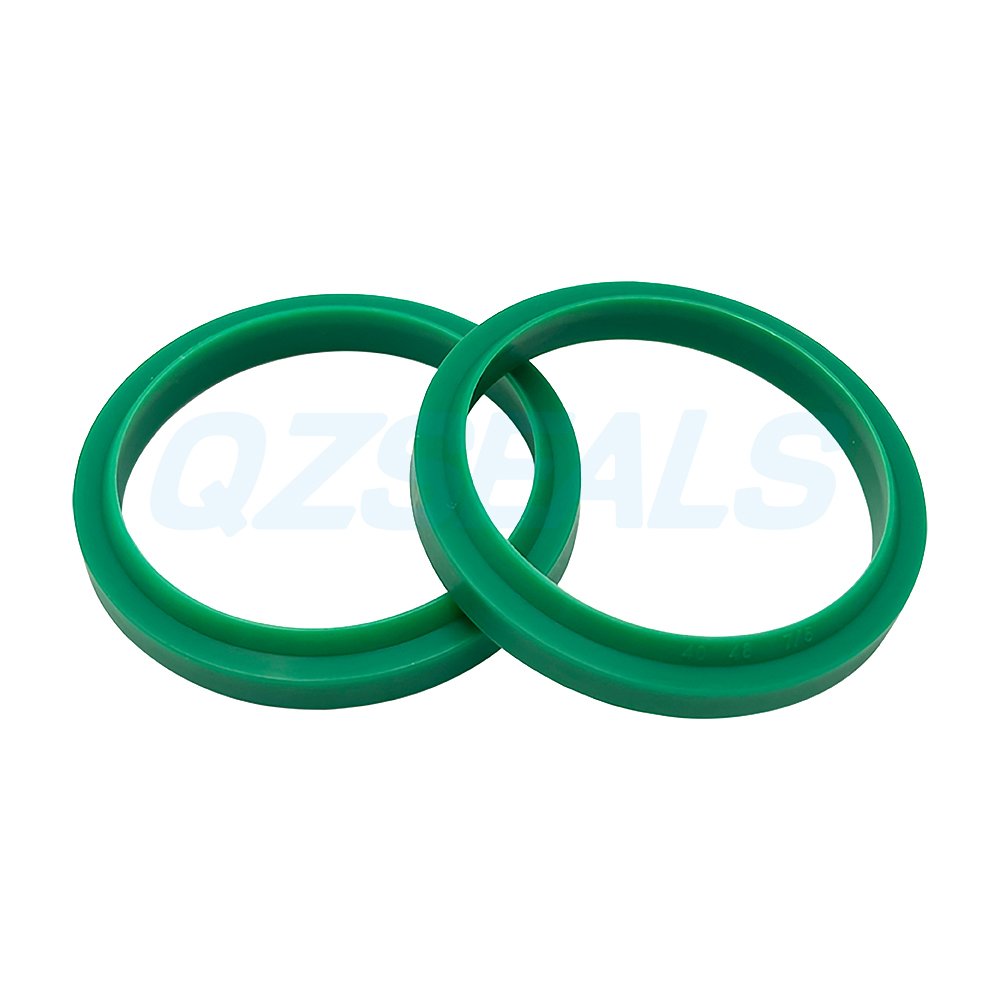

Applications: A5 wiper seal is used for the axial actuators, plungers, and piston rods of hydraulic cylinders and pneumatic cylinders.
Features
Easy to install and assemble.
- Excellent abrasion resistance for longer service life.
- High extrusion resistance under pressure.
- Low permanent deformation and stable sealing performance.
Installation Profile
Specification Table (mm)
| Name | d | D | L | H |
| A5 | 20 | 28 | 5.3 | 7 |
| A5 | 25 | 33 | 5.3 | 7 |
| A5 | 30 | 38 | 5.3 | 7 |
| A5 | 35 | 43 | 5.3 | 7 |
| A5 | 40 | 48 | 5.3 | 7 |
| A5 | 45 | 53 | 5.3 | 7 |
| A5 | 50 | 58 | 5.3 | 7 |
| A5 | 55 | 63 | 5.3 | 7 |
| A5 | 60 | 68 | 5.3 | 7 |
| A5 | 65 | 73 | 5.3 | 7 |
| A5 | 70 | 78 | 5.3 | 7 |
| A5 | 75 | 83 | 5.3 | 7 |
| A5 | 80 | 88 | 5.3 | 7 |
| A5 | 85 | 93 | 5.3 | 7 |
| A5 | 90 | 98 | 5.3 | 7 |
| A5 | 95 | 103 | 5.3 | 7 |
| A5 | 100 | 108 | 5.3 | 7 |
