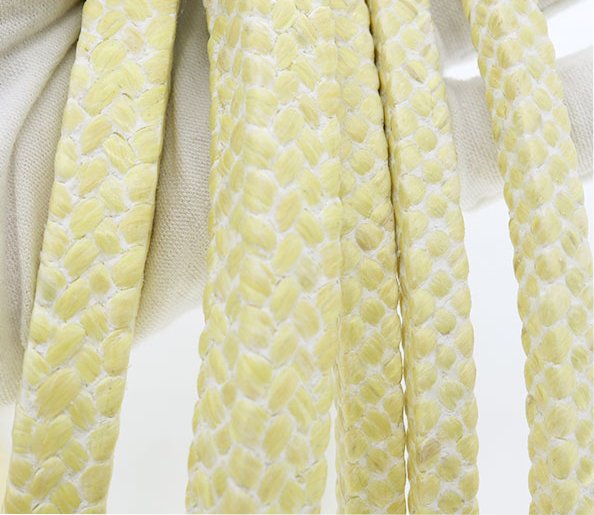

This aramid fiber gland packing is constructed from high-tenacity aramid fibres and impregnated with PTFE dispersion and lubricating oil, delivering exceptional sealing performance in harsh industrial environments.
Its interlock braiding ensures superior pressure resistance and dimensional stability, while the PTFE treatment reduces start-up friction and minimizes shaft wear. This makes it highly suitable for abrasive and corrosive applications where conventional packing fails.
For optimal performance, the shaft or sleeve hardness should be above 45 HRC. If your equipment does not meet this requirement, our team can provide alternative recommendations.
Technical Information
Temperature Range: -100°C to 260°C
Working Pressure: 200 bar (static), 35 bar (rotary), 200 bar (reciprocating)
Shaft Speed: 20 m/s (rotary), 10 m/s (reciprocating)
Suitable Media: Magma, massecuite, juice, stock, ash slurry, mud slurry, fly ash water, sewage, wood pulp, bleach pulp, wash water, raw/turbid water, chemical slurries, abrasive mixtures
Product Features
- High-strength aramid fibre construction for excellent wear and cut resistance.
- PTFE dispersion impregnation reduces friction and enhances chemical resistance.
- Stable volume and resilience under high load and abrasive conditions.
- Interlock braided structure provides outstanding extrusion and pressure resistance.
- Suitable for abrasive slurries and solids-laden media such as fly ash, stock, mud, pulp, and sugar juice.
- Low shaft wear due to specialty PTFE lubrication process.

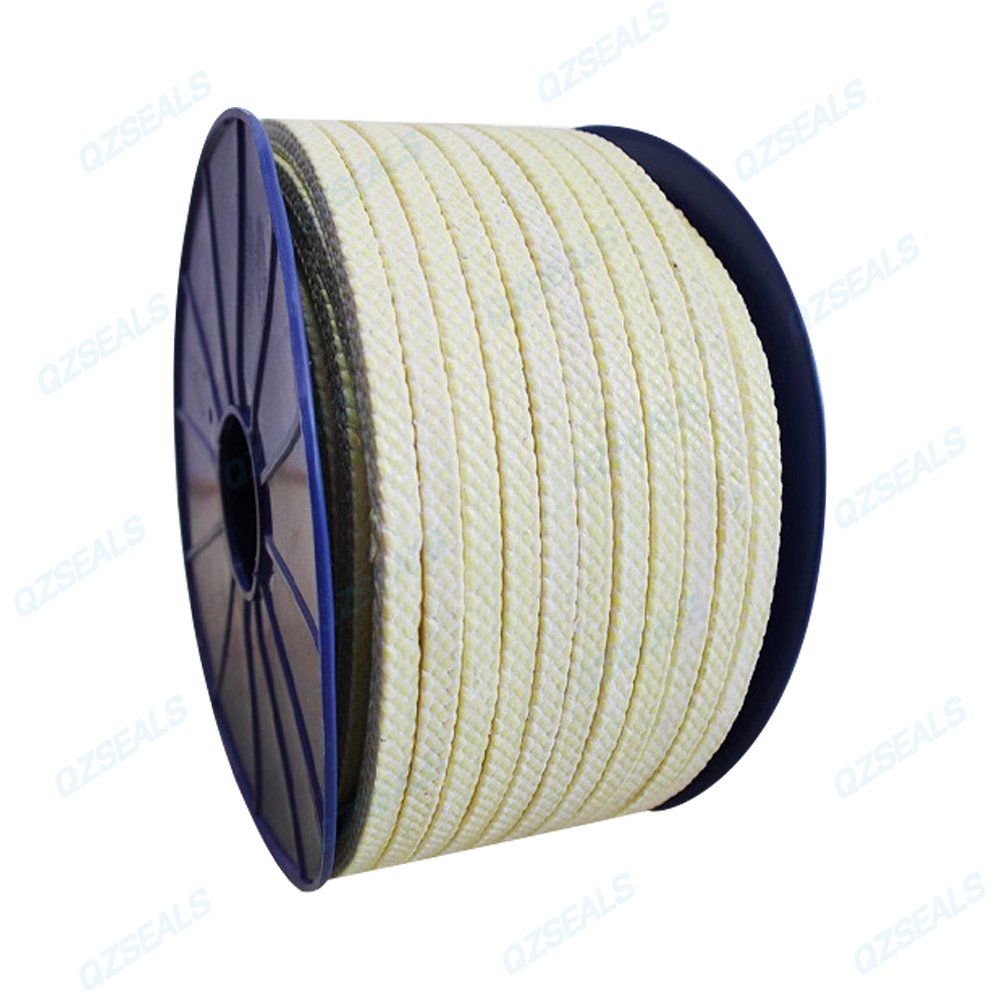

- Available in rope or precision-cut rings.
- Food-grade option available.
Applications
This aramid fiber gland packing is excellent for equipment handling:
- Highly abrasive slurries
- Sugar industry fluids (juice, massecuite)
- Mining slurry and ash handling
- Wastewater and sewage
- Pulp & paper processing
- Raw water and turbid water
- Chemical slurry systems
- General industrial pumps and mixers
Its combination of aramid strength and PTFE lubrication ensures long service life even under harsh operating conditions.
Specifications
4*4mm
6*6mm
8*8mm
10*10mm
12*12mm
14*14mm
16*16mm
18*18mm
20*20mm
22*22mm
25*25mm
30*30mm
50*50mm
Customization Options
We provide tailored manufacturing for:
Customized Rope sizes except for listed ones
Ring dimensions (ID/OD/height to drawing)
PTFE impregnation level
Braid density and hardness
Food-grade formulation
OEM branding & packaging
