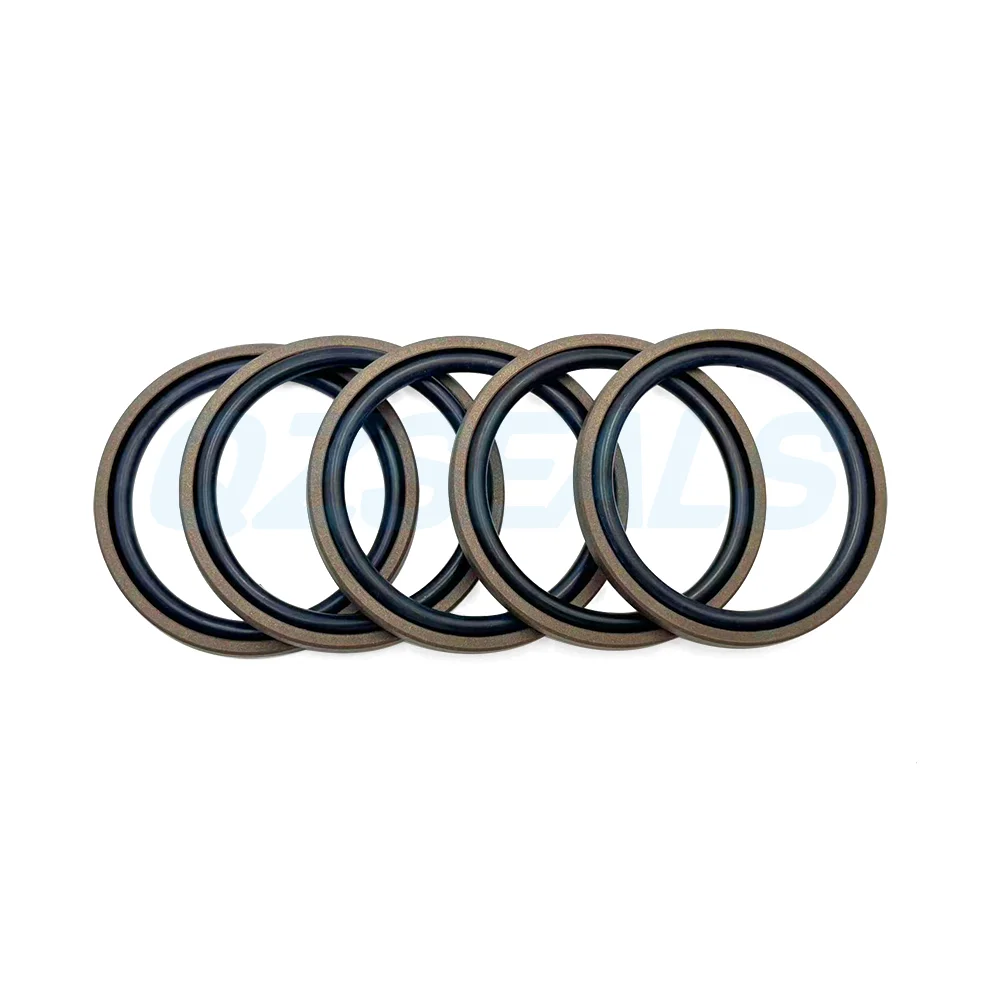

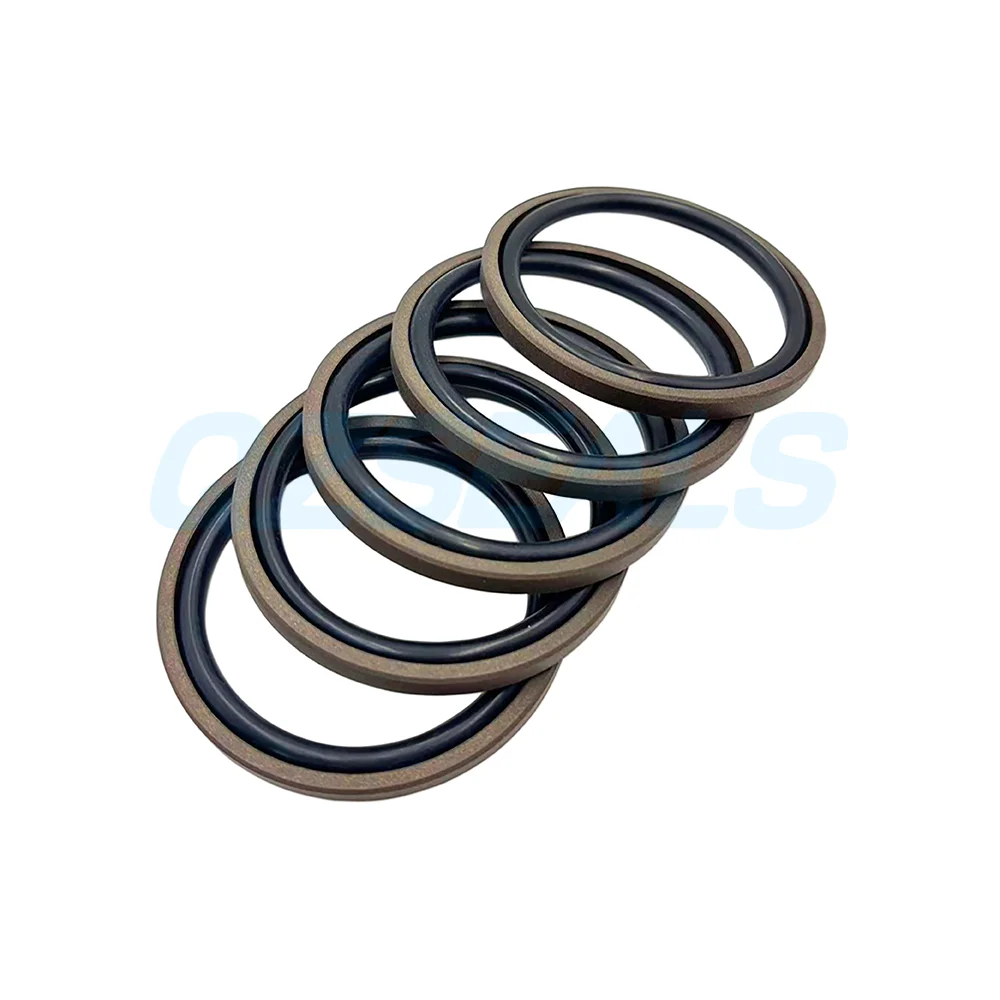

GSF Piston Seal / Glyd ring is double-acting piston seal, consisting of a filled PTFE (Teflon) sealing ring and an O-ring, it is a highly effective and reliable low-friction hydraulic seal.

Technical data

Pressure: ≤35 MPa

Speed: ≤15 m/s

Temperature: -30~ 120℃

Media: Minderal oil based hydraulic fluids, Hydraulic oil, water, emulsion,air, water.

Applications: GSF piston seal is  widely used in high, medium, and low pressure hydraulic systems, suitable for heavy-duty and high-frequency reciprocating motion,
such as injection molding machines, forklifts, agricultural machinery, bulldozers, excavators, forging presses, ceramic presses, rolling mills, servo systems, and machine tools.

Get a quote
SKU： 5000 Category：

Materials

 Slide ringElastomerBackup ring
StandardPTFE filled bronzeNBR/PU80POM
Special (on request)PTFE filled carbon fiberFKM brownNylon

Features

  • Excellent dynamic and static sealing performance

  • Safe to use in contaminated media due to larger extrusion clearance
  • Allows relatively large extrusion gaps
  • Low friction, no stick-slip phenomenon
  • Strong adaptability to various working conditions due to the availability of multiple material options

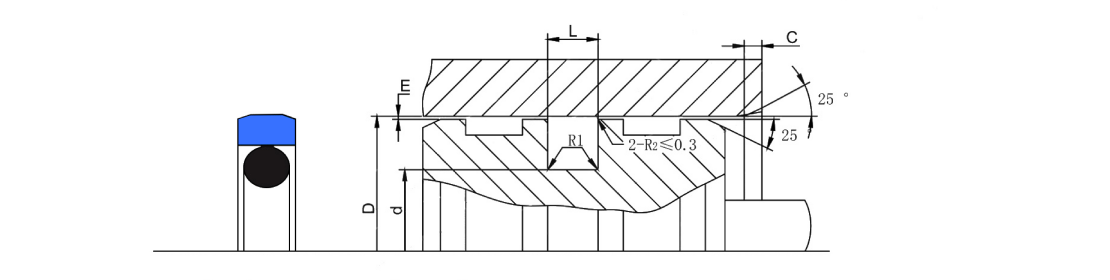

Installation Profile

GSF installation profile

GSF Piston Seal Specification Table (mm)

Part No.ID(d)OD(D)Width(L)
GSF-202012.53.2
GSF-2402416.53.2
GSF-252517.53.2
GSF-282820.53.2
GSF-303022.53.2
GSF-323224.53.2
GSF-353527.53.2
GSF-363628.53.2
GSF-383830.53.2
GSF-4040294.2
GSF-4545344.2
GSF-4848374.2
GSF-5050394.2
GSF-5252414.2
GSF-5555444.2
GSF-5656454.2
GSF-6060494.2
GSF-6363524.2
GSF-6464534.2
GSF-6565544.2
GSF-7070594.2
GSF-7575644.2
GSF-808064.56.3
GSF-858569.56.3
GSF-909074.56.3
GSF-959579.56.3
GSF-10010084.56.3
GSF-10510589.56.3
GSF-11011094.56.3
GSF-11511599.56.3
GSF-120120104.56.3
GSF-125125109.56.3
GSF-130130114.56.3
GSF-1401401198.1
GSF-1451451248.1
GSF-1501501298.1
GSF-1551551348.1
GSF-1601601398.1
GSF-1651651448.1
GSF-1701701498.1
GSF-1751751548.1
GSF-1801801598.1

Contact us today to request a quote for more details of GSF piston seal!
