Technical Data
Material: Modified TPU + carbon steel
Hardness: HS 90±2 A
Temperature: −35°C to +200°C
Pressure: ≤ 32 MPa
Media: Hydraulic oil, emulsions, water, air, steam

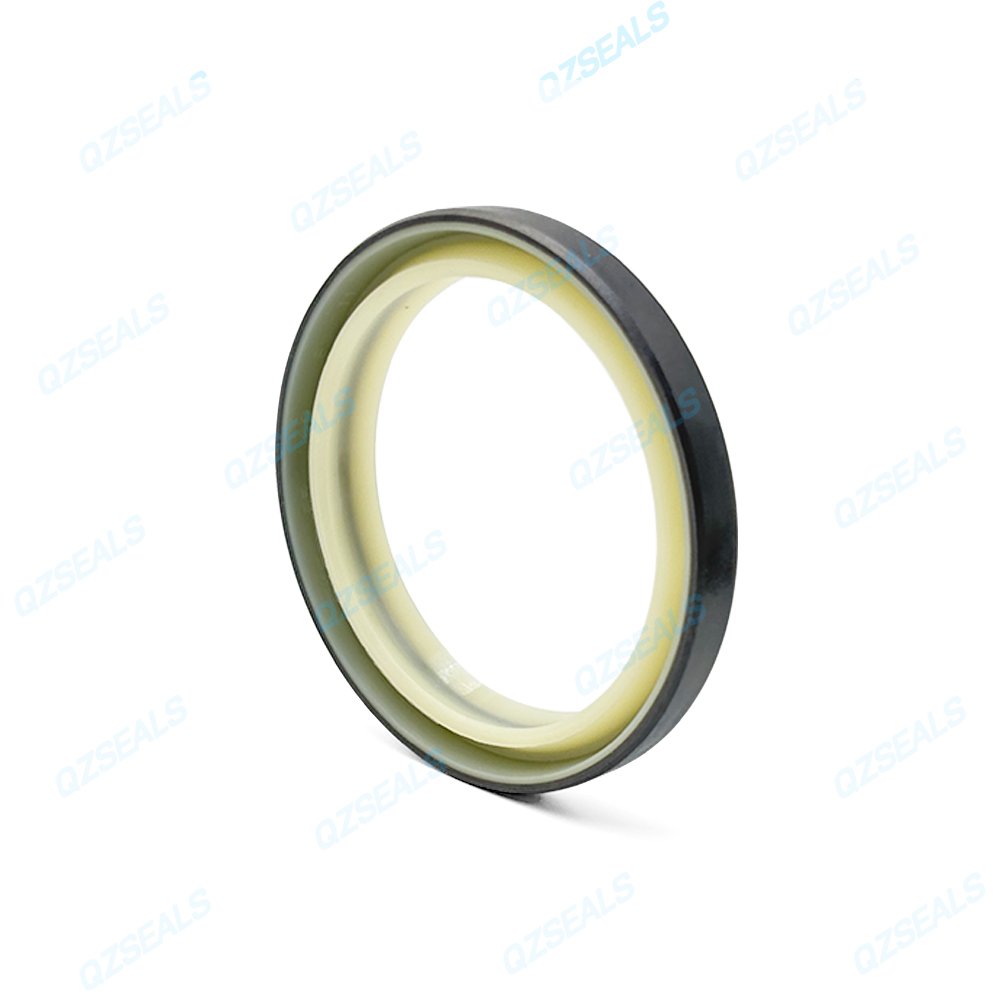

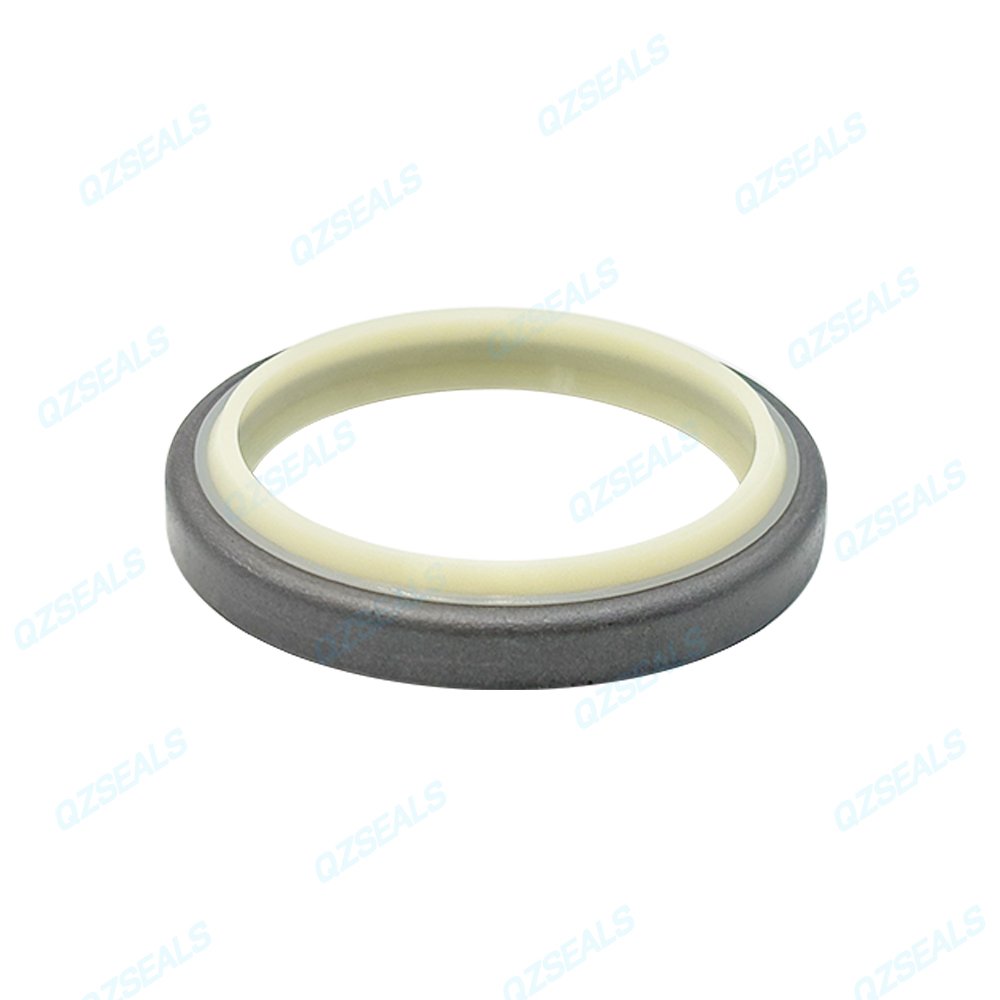

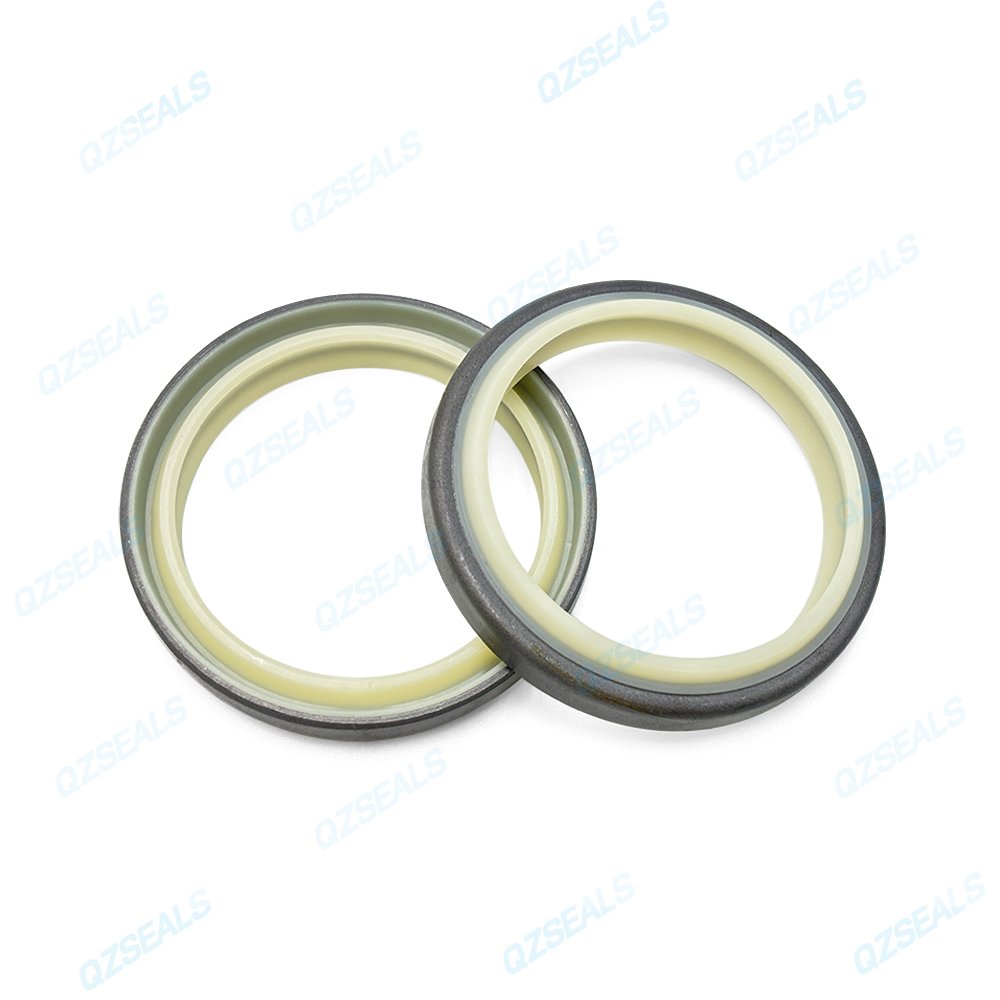

DKBI Dust Seals Product Features
Strong wiping action removes dust, mud, metal particles, and contaminants while providing excellent oil-scraping performance.
Made from modified polyurethane (TPU) with an embedded steel frame, offering long service life and superior elasticity.
The primary sealing lip maintains consistent pressure against the rod surface, ensuring reliable hydraulic oil retention.
The secondary dust lip prevents external contaminants from entering the hydraulic system.
Steel inner frame enhances rigidity and ensures a secure interference fit in the mounting groove.
Simple groove design and tight-fit structure allow fast, stable installation.
Applications
Hydraulic cylinder rods
Engineering and construction machinery
Heavy-duty industrial hydraulic equipment
Environments with high contamination and frequent reciprocating motion
DKBI Dust Seals Size(mm)
DKBI 12*22*4/7
DKBI 20*32*6/9
DKBI 25*37*6/9
DKBI 30*42*6/9
DKBI 32*44*7/10
DKBI 30*47*7/10
DKBI 35*47*7/10
DKBI 35*52*8/11
DKBI 40*52*7/10
DKBI 45*57*7/10
DKBI 45*68*8/11
DKBI 50*62*7/10
DKBI 50*64*7/10
DKBI 50*72*7/10
DKBI 55*69*8/11
DKBI 60*74*8/11
DKBI 60*82*8/11
DKBI 65*79*8/11
DKBI 70*84*8/11
DKBI 75*89*8/11
DKBI 80*92*8/11
DKBI 80*94*8/11
DKBI 85*99*8/11
DKBI 90*104*8/11
DKBI 95*107*8/11
DKBI 95*109*8/11
DKBI 100*114*8/11
DKBI 105*121*9/12
DKBI 110*126*9/12
DKBI 115*127*9/12
DKBI 115*131*9/12
DKBI 120*136*9/12
DKBI 125*141*9/12
DKBI 130*146*9/12
DKBI 140*160*10/14
DKBI 145*165*10/14
DKBI 150*170*10/14
DKBI 160*180*10/14
DKBI 170*190*10/14
DKBI 180*200*10/14
DKBI 180*205*12/17
DKBI 190*215*12/17
DKBI 200*225*12/17
DKBI 210*235*12/17
DKBI 220*245*12/17
DKBI 225*250*12/17
DKBI 230*255*12/17
DKBI 240*265*12/17
DKBI 250*275*12/17
DKBI 260*285*12/17
