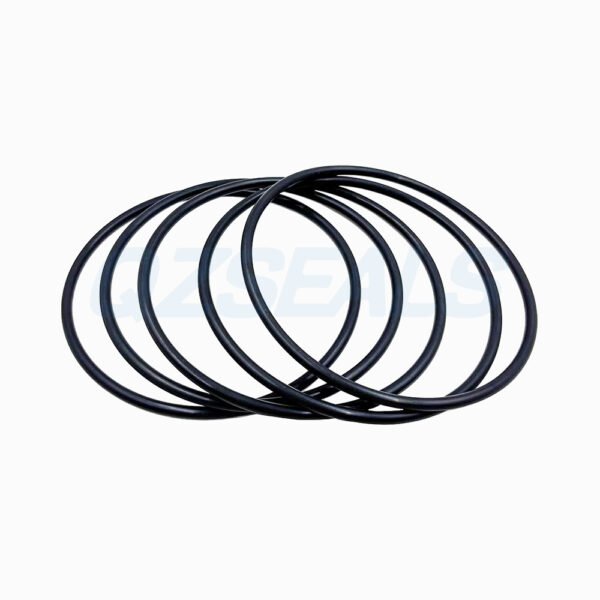

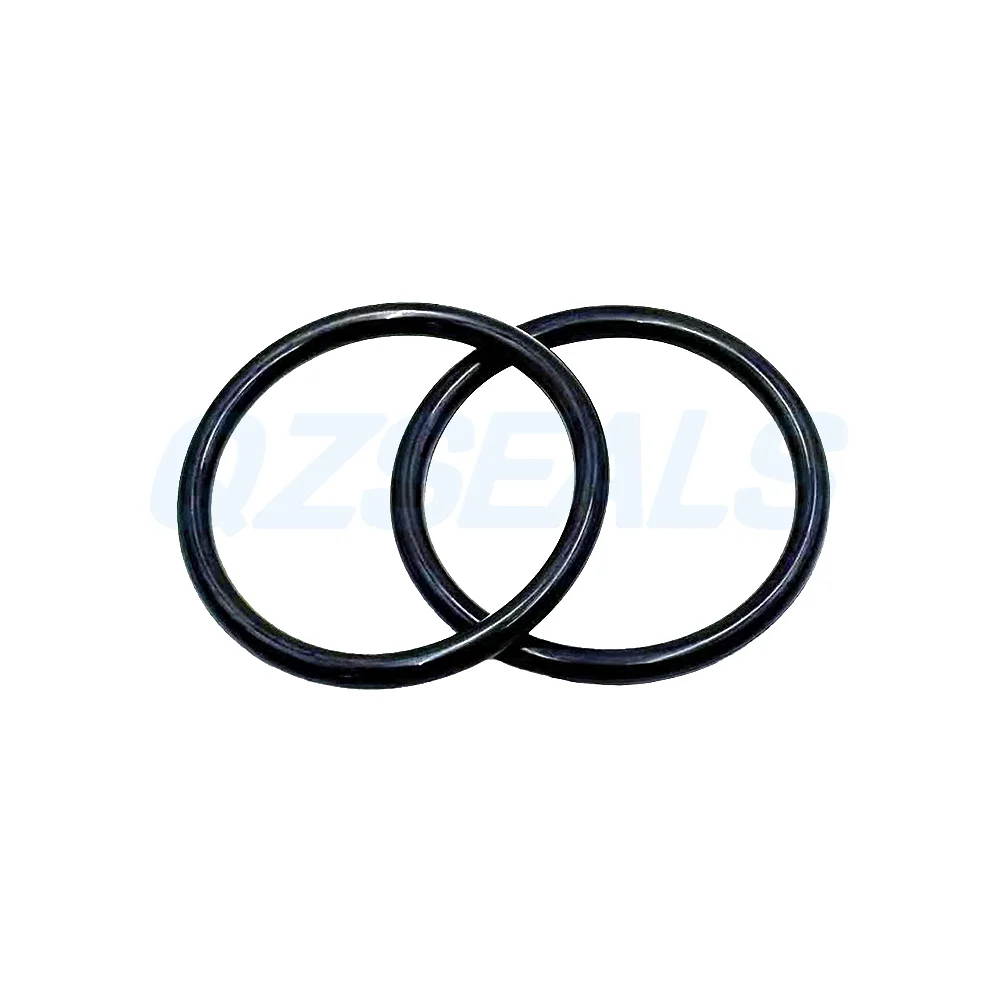

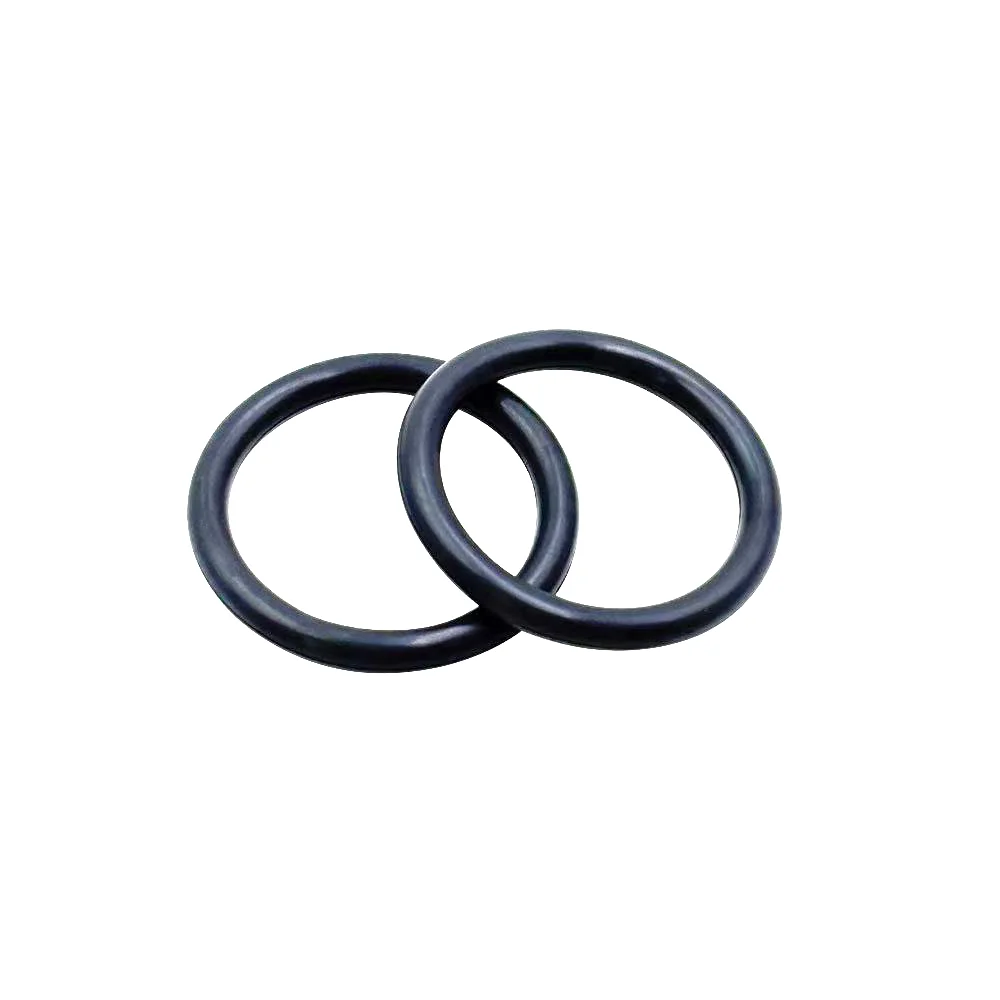

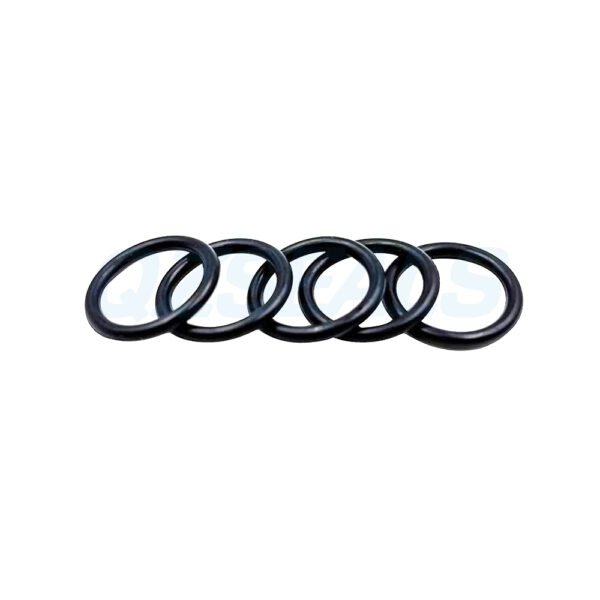

An O rings are round rubber seals/rubber rings/sealing gaskets that fits into a groove and is compressed between two or more components to create a reliable seal and prevent leakage.
O Ring Technical Data
1. Dimensions
Inner Diameter (ID): Standard metric and inch sizes available.
Cross-Section (CS): Range of thicknesses to fit different grooves and sealing requirements
Tolerance: Conforms to ISO 3601 / AS568 standards

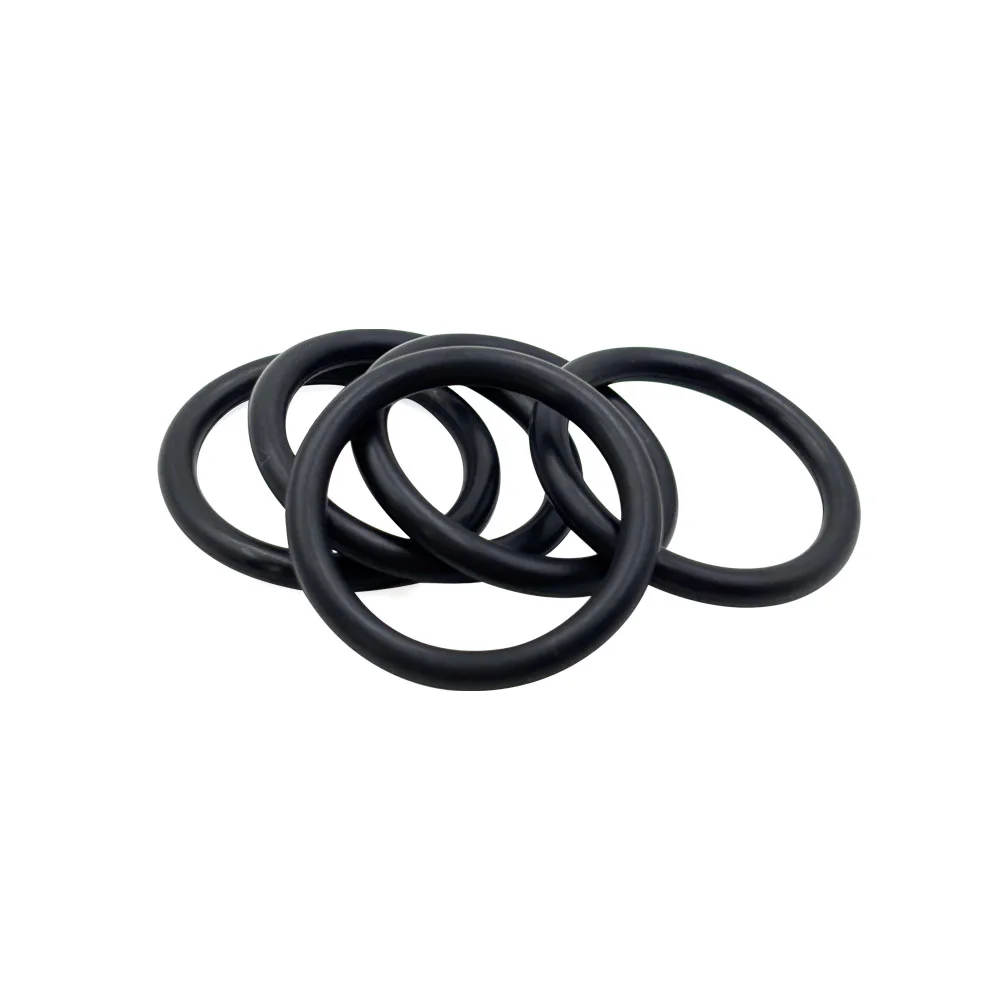

2. Materials & Compounds
- NBR (Nitrile Rubber): Good resistance to oils, fuels, and water; temperature range: -40°C to 100°C
- EPDM (Ethylene Propylene): Excellent resistance to heat, steam, and chemicals; temperature range: -50°C to 150°C
- FKM / Viton: High temperature and chemical resistance; temperature range: -20°C to 200°C
- Silicone: Excellent flexibility at low temperatures; temperature range: -60°C to 200°C
- PU (Polyurethane): High wear resistance; temperature range: -30°C to 90°C
3. Application
- Hydraulic systems
- Pneumatic systems
- Static sealing (Like flanges, covers)
- Low-pressure dynamic sealing (Like rods, pistons)
4. Physical Properties
- Hardness (Shore A): 30–90A, depending on material
- Compression Set: Low to ensure long-term sealing
- Chemical Compatibility: Varies by material, suitable for oils, water, air, and various chemicals
5. Installation & Maintenance
- Ensure correct groove dimensions and surface finish
- Avoid sharp edges or contaminants during assembly
Features
- Versatile Use: Suitable for both hydraulic and pneumatic systems, in static and low-pressure dynamic applications.
- Dual-Sided Sealing: Provides efficient sealing while saving space in your design.
- Rod & Piston Compatible: Reliable performance in various configurations.
- Wide Material & Size Range: Easily find the right O-ring for your needs.
- Easy Handling: Quick installation and removal for faster maintenance.
- Cost-Effective: Delivers high performance without breaking your budget.
Optimal Performance Tips: Success with O rings depends on correct dimensions, proper material selection, and smooth surface finishes on mating parts.
Contact us today to request a quote for more details of O rings!
