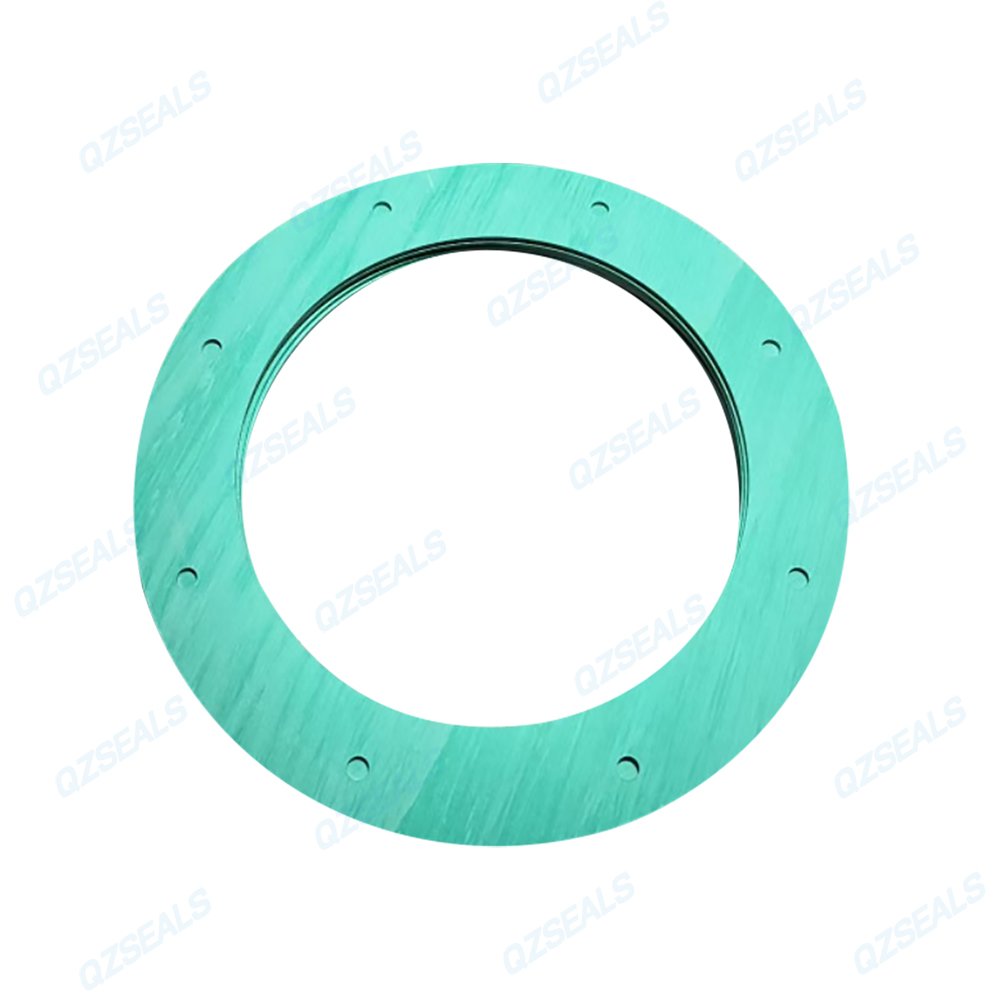

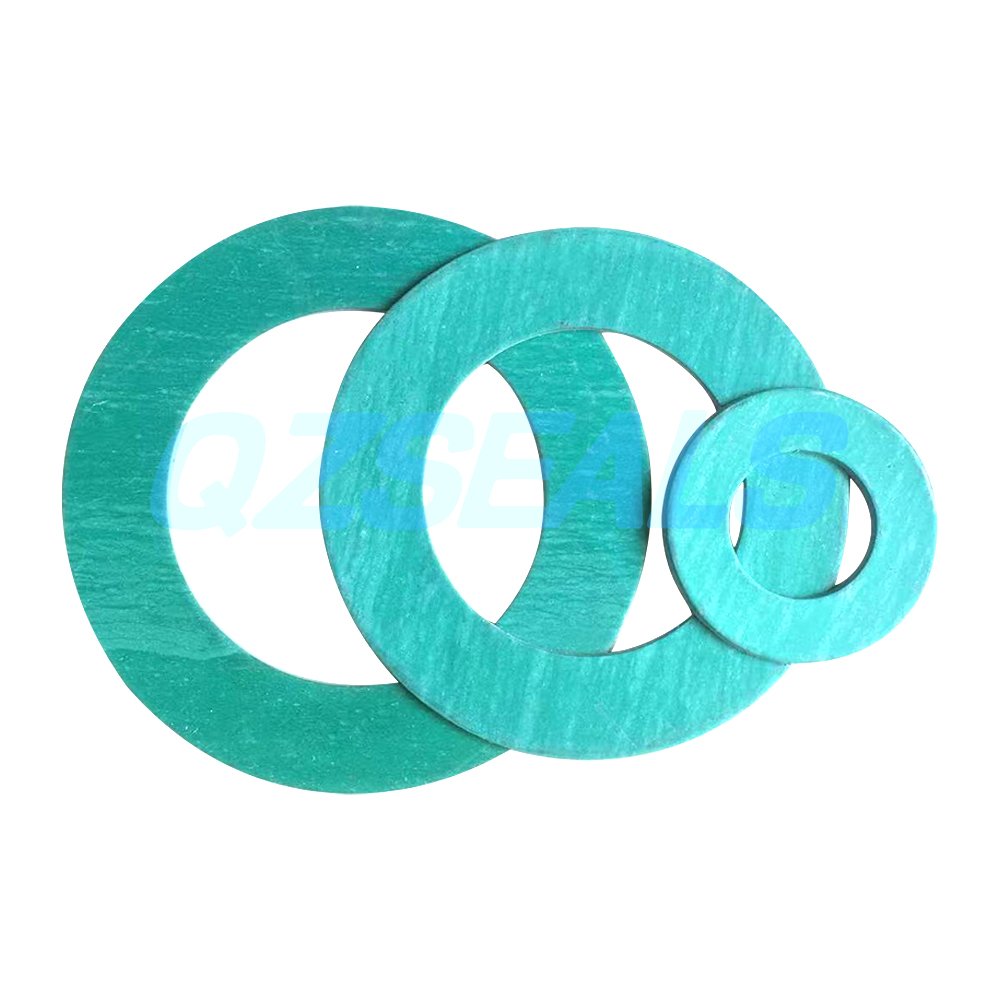

Our oil-resistant asbestos gaskets are made from high-quality asbestos fibers, oil-resistant fibers, fillers and rubber binders through calendaring and vulcanization.
They provide excellent sealing performance in fuel systems, lubrication pipelines, chemical equipment and high-temperature industrial environments.
Maximum diameter available: ~1300 mm.
Non-standard shapes and customized designs are supported.
Technical Data
| Material | Asbestos fiber + oil-resistant fiber + rubber compounds + fillers |
| Temperature Range | –100°C ~ 500°C |
| Working Pressure | ≤ 5.0 MPa |
| Thickness Options | 1–6 mm (popular: 3–5 mm) |
| Media | Fuel oil, petroleum, kerosene, diesel, lubricating oil, heat-transfer oil, water, steam, hydrocarbon solvents |
| Customization | Yes, based on drawings or samples |
Features
Excellent resistance to fuel oil, diesel, kerosene and solvents
Wide temperature range: –100°C to 500°C
Suitable for water, steam and medium-strength acids/alkalis
High compressibility and good recovery performance
Stable sealing under ≤ 5.0 MPa
Corrosion-resistant formulation with selected fillers
Common thickness: 3–5 mm
Support OEM and non-standard flange gasket production
Applications
Oil & gas pipelines
Petrochemical equipment
Power plant flanges, pumps, valves
Lubrication and fuel systems
Steam & water pipelines
Marine and mechanical engineering
General industrial sealing applications
Available Styles
Flat cut gaskets
Full-face flange gaskets
Ring-type gaskets
Pump & valve gasket shapes
Custom drawings welcome
Oil-Resistant Asbestos Gaskets Specification Table (mm)
Nominal Diameter ID/OD*T
DN10 18*46*3mm
DN15 22*51*3mm
DN20 27*61*3mm
DN25 34*71*3mm
DN32 43*82*3mm
DN40 49*82*3mm
DN50 61*107*3mm
DN65 77*127*3mm
DN80 89*142*3mm
DN100 115*162*3mm
DN125 141*192*3mm
DN150 169*218*3mm
DN200 220*273*3mm
DN250 273*328*3mm
DN300 325*378*3mm
DN350 377*438*3mm
DN400 426*489*3mm
DN450 480*539*3mm
DN500 530*594*3mm
DN600 630*695*3mm
DN700 720*810*3mm
DN800 820*917*3mm
DN900 920*1017*3mm
DN1000 1020*1124*3mm
DN1200 1220*1341*3mm
