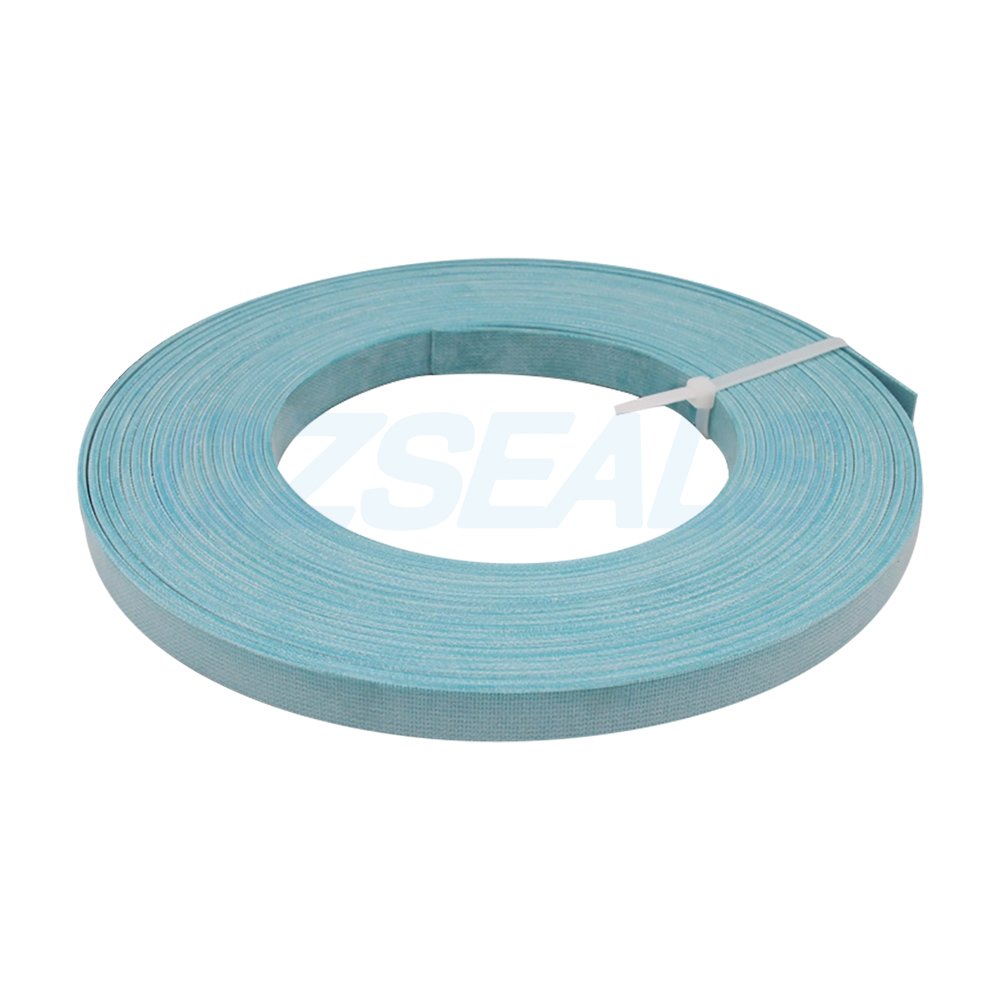

QZSEALS Phenolic Resin Fabric Guide Tape, also known as GST wear strip, is manufactured using high-strength woven fabric, thermosetting phenolic resin, lubrication additives, and PTFE modifiers. The material provides excellent vibration absorption, superior wear resistance, and reliable dry-running characteristics.
In hydraulic cylinders, the guide tape ensures precise guidance of pistons and piston rods while absorbing radial forces that occur during operation. It effectively prevents metal-to-metal contact between sliding components—such as the piston and cylinder tube or the rod and cylinder head—significantly extending component service life.
Note:
The load-bearing capacity of PTFE-modified phenolic material decreases as temperature increases. The maximum recommended working temperature is 200°C.
Technical Data
Material: Phenolic resin with fabric composite, blue/red color
Sliding Speed: ≤ 1 m/s
Temperature: -60°C to +200°C
Media: Hydraulic oils, fire-resistant fluids, eco-friendly hydraulic oils, water, and others
Features
High load-bearing capacity; prevents metal-to-metal contact
Excellent heat and wear resistance, long service life
Low friction, ideal for dry-running conditions
Absorbs side loads and suppresses mechanical vibration
Allows larger extrusion gaps for seals due to improved alignment
Water absorption <0.1%, dimensional stability
Easy installation with simple groove design
Continuous 10 m roll reduces material waste
Supports spiral-cut customization for small sizes
Compatible with mineral oils, water-based fluids, and phosphate-esters
High dynamic compressive strength to reduce machining and operating costs
Available Sizes (Width × Thickness)
(10 meters a roll)
5.6*2.5mm
6.3*2.5mm
8.1*2.5mm
9.5*2.5mm
9.7*2.5mm
10*2.5mm
12*2.5mm
12.7*2.5mm
15*2.5mm
20*2.5mm
25*2.5mm
30*2.5mm
35*2.5mm
40*2.5mm
9.7*3mm
10*3mm
15*3mm
20*3mm
25*3mm
30*3mm
35*3mm
40*3mm
9.7*4mm
15*4mm
20*4mm
25*4mm
30*4mm
40*4mm
50*5mm
Custom dimensions and fully machined guide rings available on request.
Why Choose Our Phenolic Resin with Fabric Guide Tape?
Manufactured with patented extrusion technology
Full traceability with on-tape size markings
Precise cutting and machining capabilities
Strong wear resistance and long service life under extreme loads
Continuous strip form minimizes waste and reduces cost
Perfect for hydraulic cylinders in extreme industrial environments
