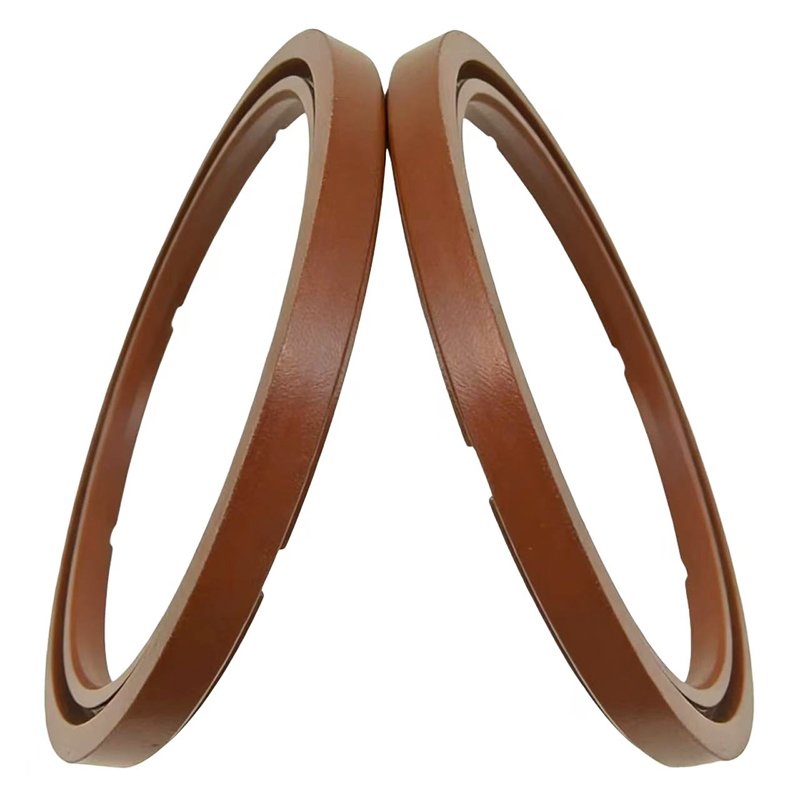

R35 Radial Shaft Seal

Material

Features

1. Fabric reinforced outer diameter provides high structural strength and excellent static sealing performance in the housing.

2. Rubber sealing lip is firmly bonded to the reinforced section, creating a durable one-piece sealing design.

3. Garter spring maintains consistent radial contact pressure on the shaft to ensure reliable sealing.

4. Sealing lip material offers high wear resistance for long service life in demanding operating conditions.

Applications

R35 shaft seals are widely used in heavy-duty industrial equipment operating under lubricated conditions. Typical applications include rolling mills, large industrial gearboxes, grinding equipment, and wind turbines, especially for sealing transmission shafts in large machinery.

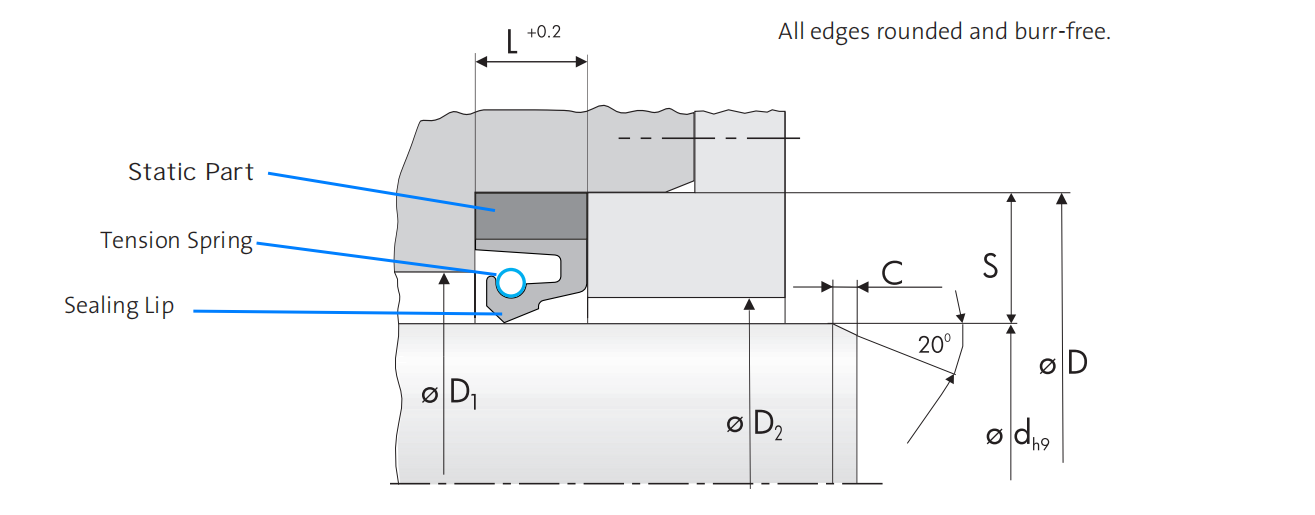

Installation Diaphgram

The R35 radial shaft seal is axially pre-tensioned to match the housing dimension L. It is installed in an axially accessible housing using a cover plate with tightening screws. The seal is supplied with an oversized sealing height so that the required preload is achieved when the cover plate is tightened during assembly.
