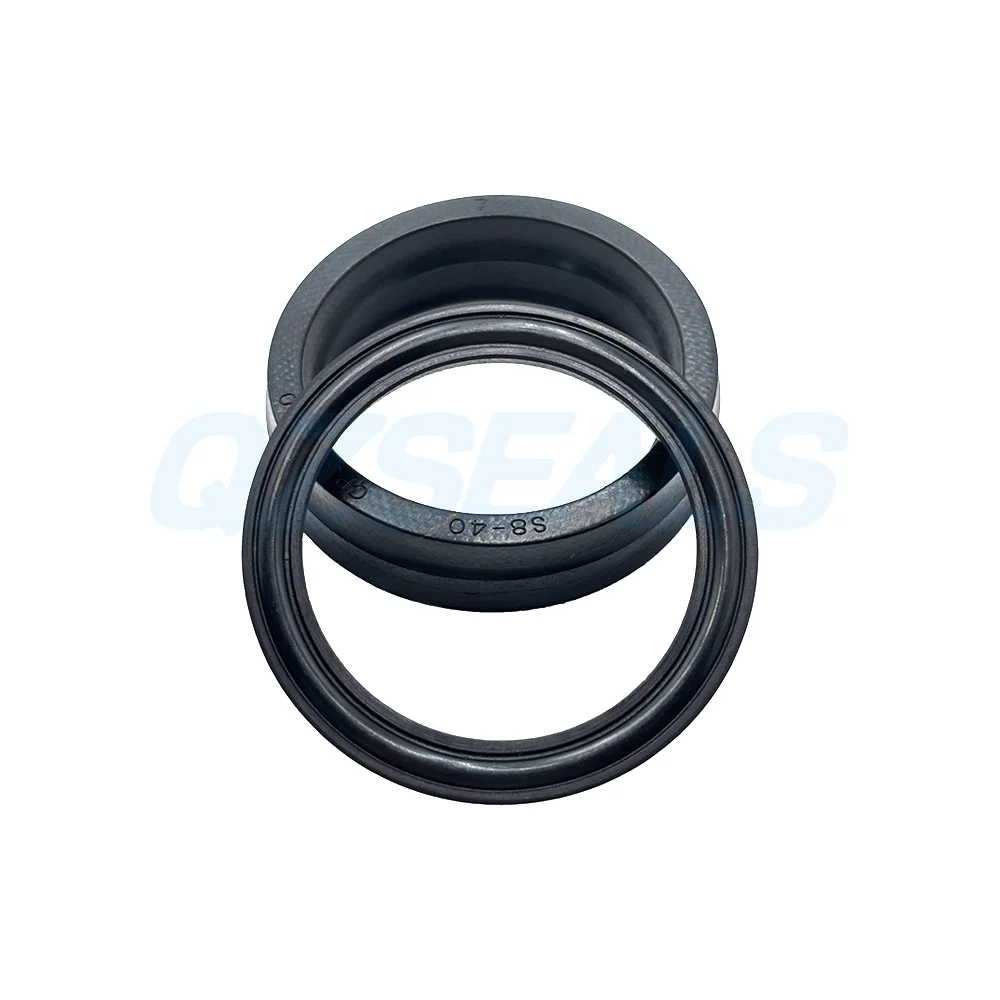

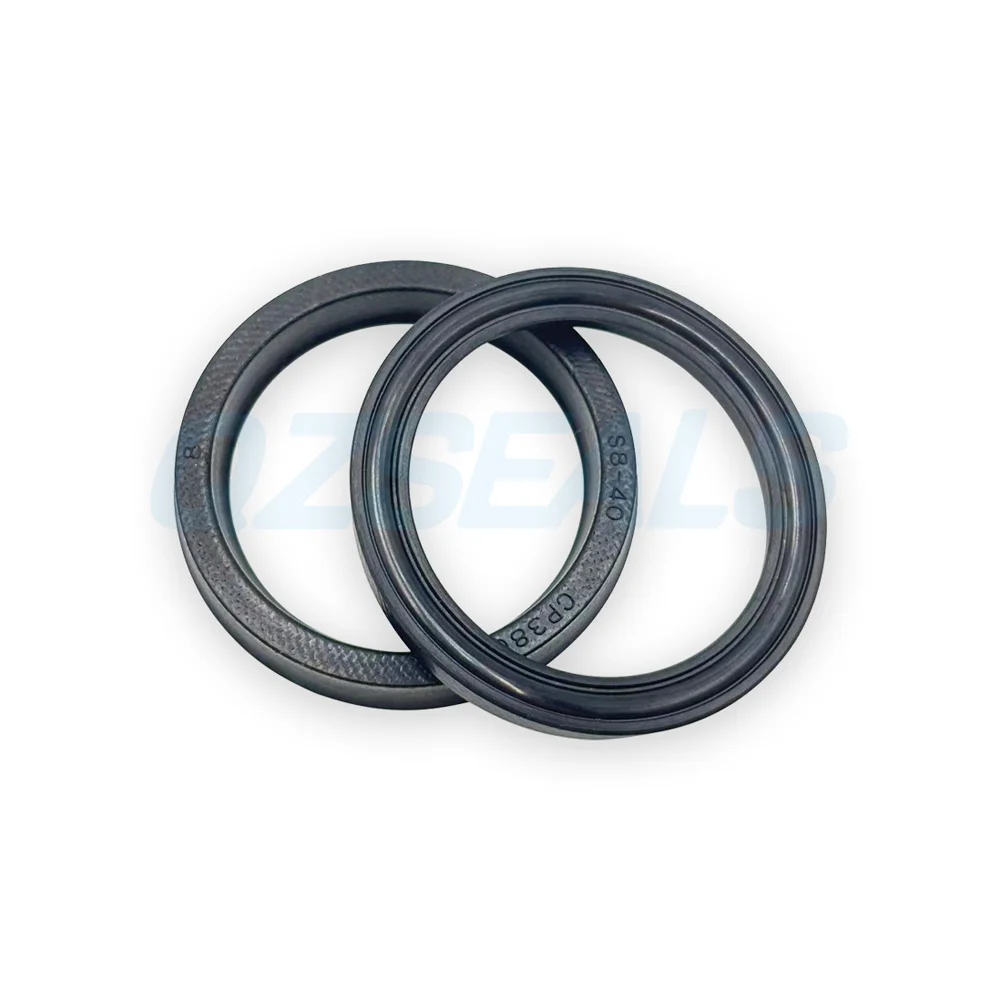

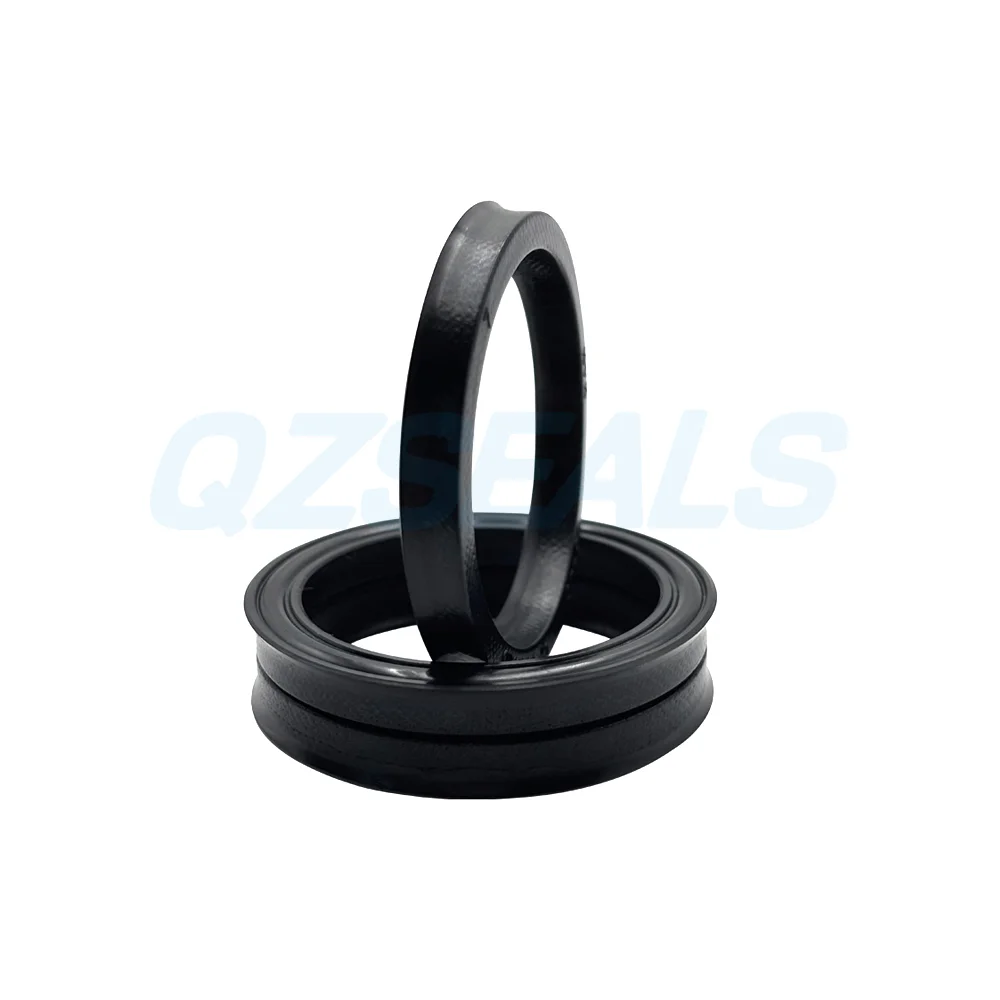

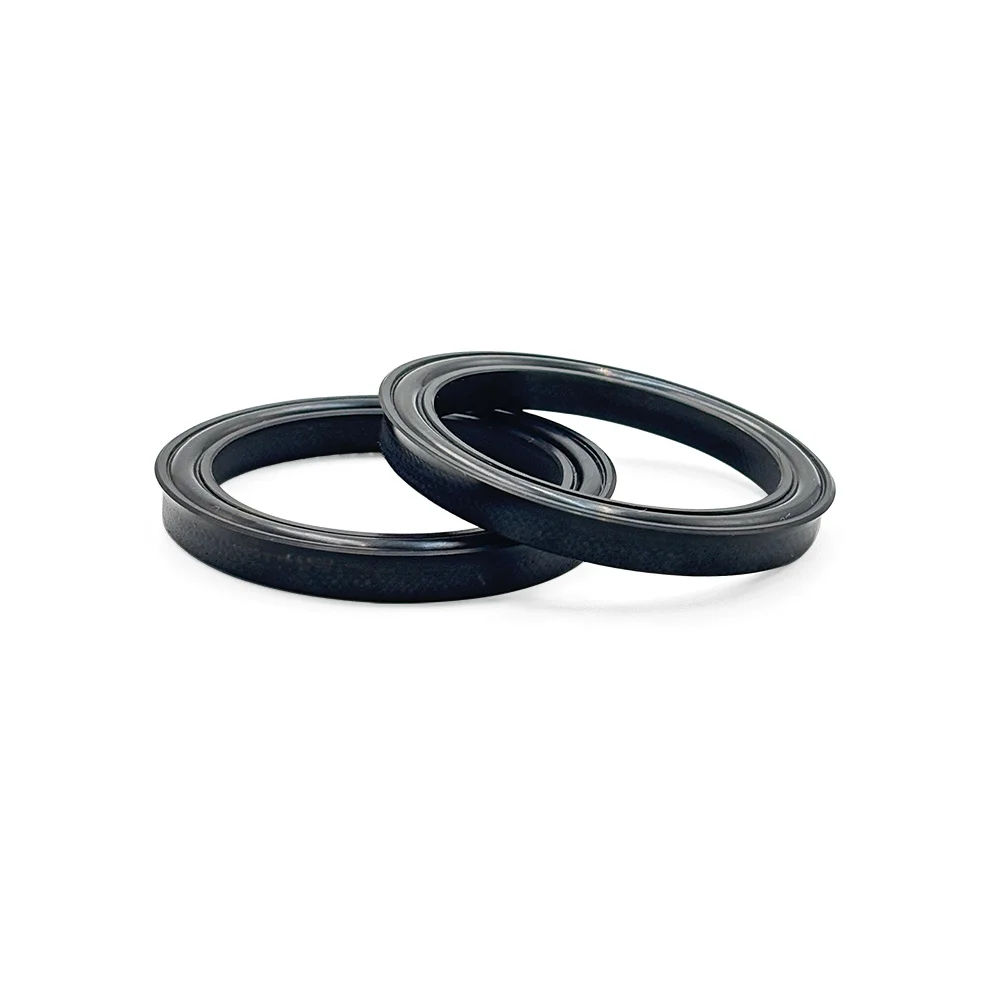

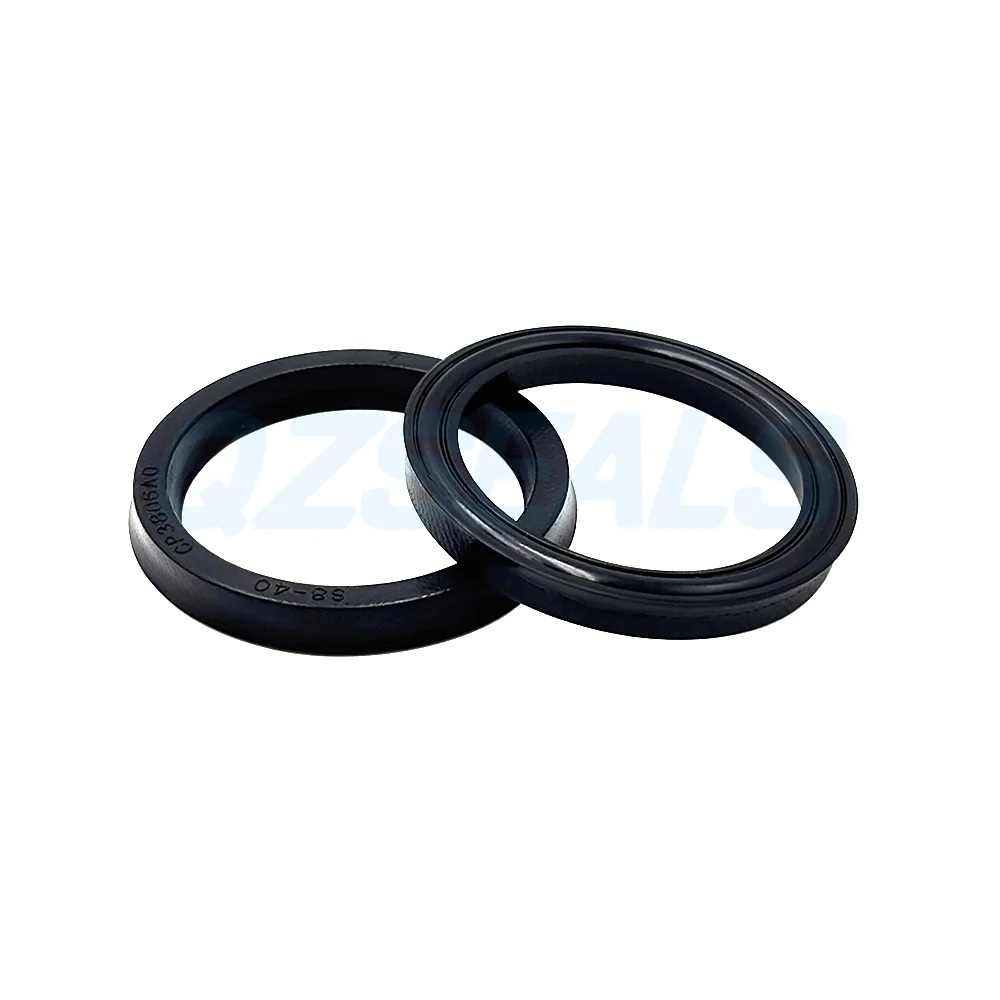

The pre-compression of S8 Rod Seal sealing lip ensures reliable low-pressure sealing performance at low pressure,as system pressure increases, the rubber energizing element applies additional force to the U-shaped ring, expanding the contact surface and enhancing the sealing effect. The fabric part provides excellent strength and durability, protecting the rubber part while maintaining a thin oil film for low friction and reduced wear — ideal for high-performance hydraulic and pneumatic applications.
Material
- NBR with fabric, black
- FKM/Viton with fabric, brown
Technical Data
Pressure: ≤25MPa
Speed: ≤0.5m/s
Temperature: -30℃～+100℃(depening on material)
Medium: General petroleum-based hydraulic oil, water, emulsified type.

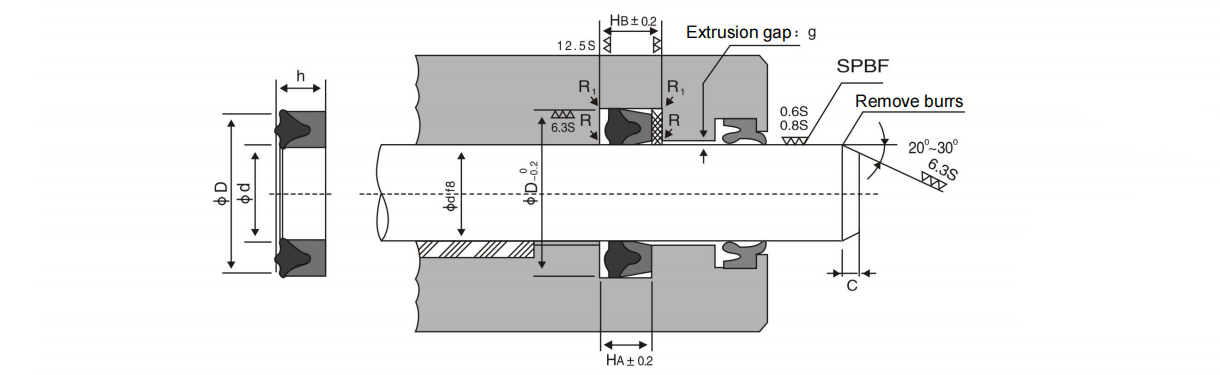

Installation Profile
Extrusion Gap: The extrusion gap on the non-pressure side during seal operation plays a key role in overall sealing performance. If the gap size exceeds the recommended value shown in the table below, it will be required to install a plastic retaining ring behind the seal to prevent extrusion and ensure long-term reliability in hydraulic applications.
16MPa 25MPa
≤6 0.2 0.1
>6-0 0.2 0.1
>10-15 0.2 0.1
Installation Note
To avoid damage to the sealing lip, care must be taken to avoid sharp edges during installation.
Specification Table (mm)
| Name | d | D | h |
| S8-20 | 20 | 28 | 6 |
| S8-25 | 25 | 33 | 6 |
| S8-28 | 28 | 36 | 6 |
| S8-30 | 30 | 38 | 6 |
| S8-32 | 32 | 40 | 6 |
| S8-35 | 35 | 43 | 6 |
| S8-36 | 36 | 44 | 6 |
| S8-40 | 40 | 48 | 6 |
| S8-42 | 42 | 50 | 6 |
| S8-45 | 45 | 55 | 7.5 |
| S8-50 | 50 | 60 | 7.5 |
| S8-53 | 53 | 63 | 7.5 |
| S8-55 | 55 | 65 | 7.5 |
| S8-56 | 56 | 66 | 7.5 |
| S8-60 | 60 | 70 | 7.5 |
| S8-63 | 63 | 75 | 9 |
| S8-65 | 65 | 77 | 9 |
| S8-68 | 68 | 80 | 9 |
| S8-70 | 70 | 82 | 9 |
| S8-75 | 75 | 87 | 9 |
| S8-78 | 78 | 90 | 9 |
| S8-80 | 80 | 92 | 9 |
| S8-85 | 85 | 97 | 9 |
| S8-88 | 88 | 100 | 9 |
| S8-90 | 90 | 100 | 9 |
| S8-95 | 95 | 110 | 11.3 |
| S8-100 | 100 | 115 | 11.3 |
