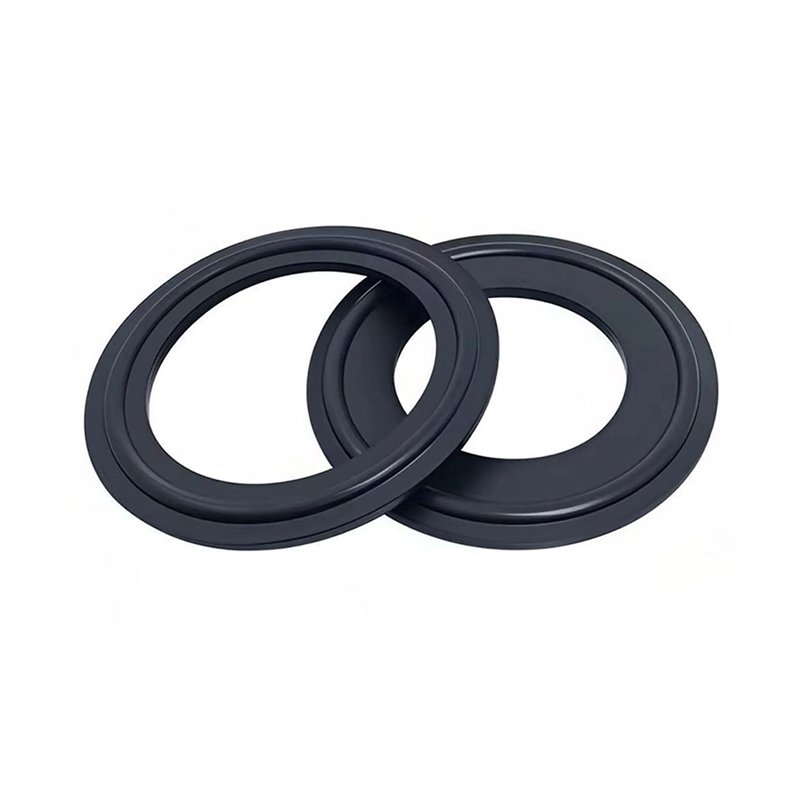

Tri Clamp Gasket

Different Tri Clamp gasket materials provide different sealing performance depending on temperature, media, and operating conditions. Below are the key characteristics of the most commonly used sanitary clamp gasket materials.

Silicone Tri Clamp Gasket

Silicone Tri clamp gaskets are widely used in sanitary industries such as food, beverage, and pharmaceutical processing due to their excellent flexibility and hygienic properties.

Features

• Smooth and delicate surface for reliable sealing performance

• Excellent elasticity with strong toughness

• Low friction coefficient and good wear resistance

• High resilience and ability to withstand impact loads without deformation

• Chemically stable, odorless, and safe for hygienic environments

• Insoluble in water and most solvents

These properties make silicone a popular material for hygienic sanitary clamp gasket used in clean processing systems.

PTFE Tri Clamp Gasket

PTFE Tri clamp gaskets are ideal for demanding applications requiring high chemical resistance and extreme temperature performance.

Features

• Excellent high temperature resistance up to 280°C

• Outstanding low temperature performance, maintaining elongation even at -196°C

• Made from 100% virgin PTFE material with no recycled fillers

• Exceptional corrosion resistance to most chemicals and solvents

• Excellent aging resistance with long service life

• Extremely low friction coefficient among solid materials

• Environmentally friendly material with certification support

These advantages make PTFE Tri clamp gaskets the preferred choice for highly corrosive or chemically aggressive environments.

FKM (Viton) Tri Clamp Gasket

FKM Tri Clamp gaskets are designed for applications involving oils, fuels, and high temperatures.

Features

• Working temperature up to +240°C

• Maintains elasticity even at -25°C

• Excellent resistance to oil, fuel, and petroleum-based fluids

• Outstanding aging resistance for long service life

• Reliable sealing performance in demanding industrial environments

These properties make FKM gaskets suitable for sanitary pipelines handling oil-based media.

EPDM Tri Clamp Gasket

EPDM Tri Clamp gaskets are widely used for water, steam, and general industrial sealing applications.

Features

• Maximum working temperature up to +150°C

• Maintains elasticity at temperatures as low as -45°C

• Excellent resistance to water, steam, and weathering

• Good aging resistance and long service life

• Cost-effective sealing solution for general industrial applications

EPDM is a popular choice for sanitary Clamp gasket used in water-based processing systems.
